DuGyte MX 6CM Stereo System
DuGyte MX 6CM Stereo System - Image 2
DuGyte MX 6CM Stereo System - Image 3
DuGyte MX 6CM Stereo System - Image 4
DuGyte MX 6CM Stereo System - Image 5
DuGyte MX 6CM Stereo System - Image 6
DuGyte MX 6CM Stereo System - Image 7
DuGyte MX 6CM Stereo System - Image 8
DuGyte MX 6CM Stereo System - Image 9

DuGyte MX 6CM Stereo System

From: $435.00

The DuGyte MX 6CM  Stereo Pedalboard Snake Cable System is designed for guitarists who run a stereo guitar amp set up’s, have amp switching rigs, or a multi effects process that has stereo outs, like the Fractal AX8/FN3, Helix or BOSS processors.

Each MX 6CM contains balanced amp outputs and Humbuster cable technology* in the effects loop Return channel allowing for 4, 5 , even 6 cable method connection configurations, but using just one cable. Another great feature of all MX Series products is the inclusion of AC ground isolation. Only available in the MX Series, the AC Ground isolation ensures there is no ‘extra or added’ noise from ground loops or bad ground issues within the AC power supply to your pedalboard..

The MX 6CM can be customized to suit your individual needs, just let us know your requirements. Check out the optional mounting kit that can attach your 6CM to your pedalboard.

SKU: MX6CM-S-5RNS Category:

Description

Overview

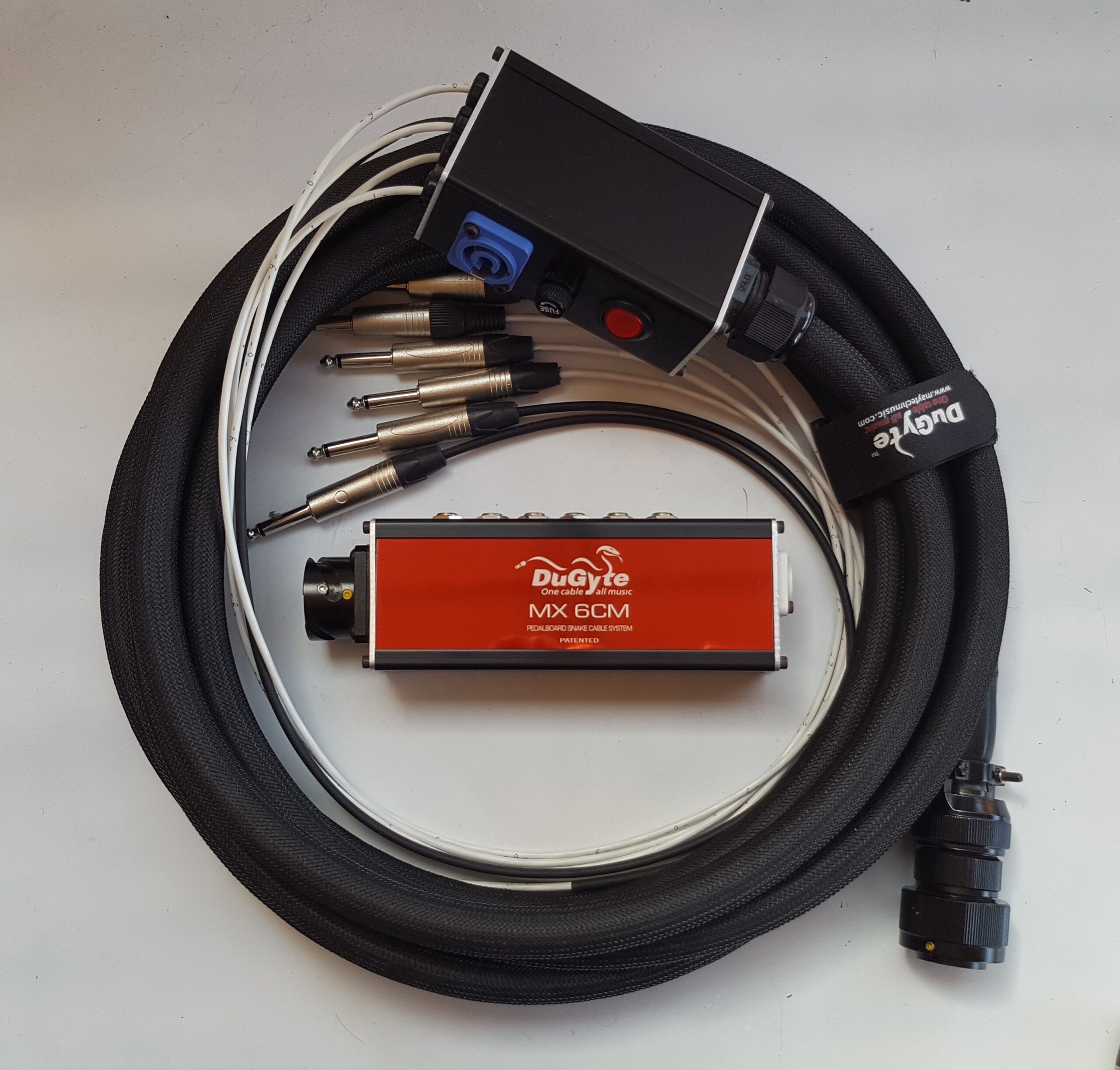

MX 6CM System Components

  1. Pedalboard Junction Box
  2. All-In-One Cable & Cable Box
  3. PowerCon AC Mains Input Cable
  4. PowerCon AC Mains Output Cable

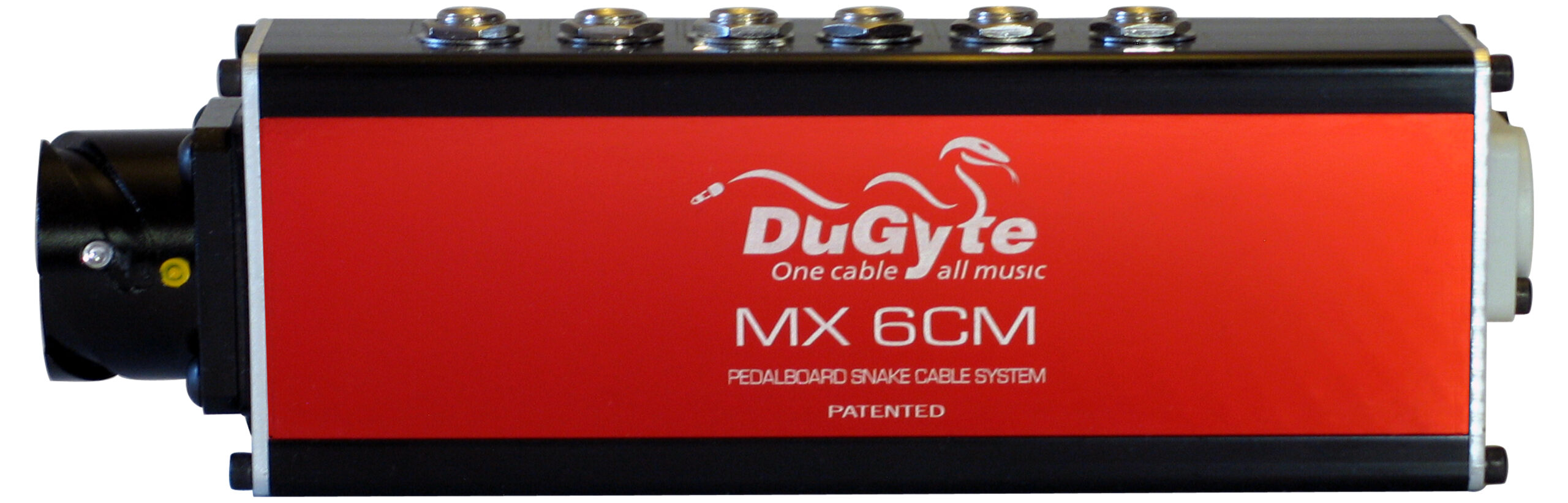

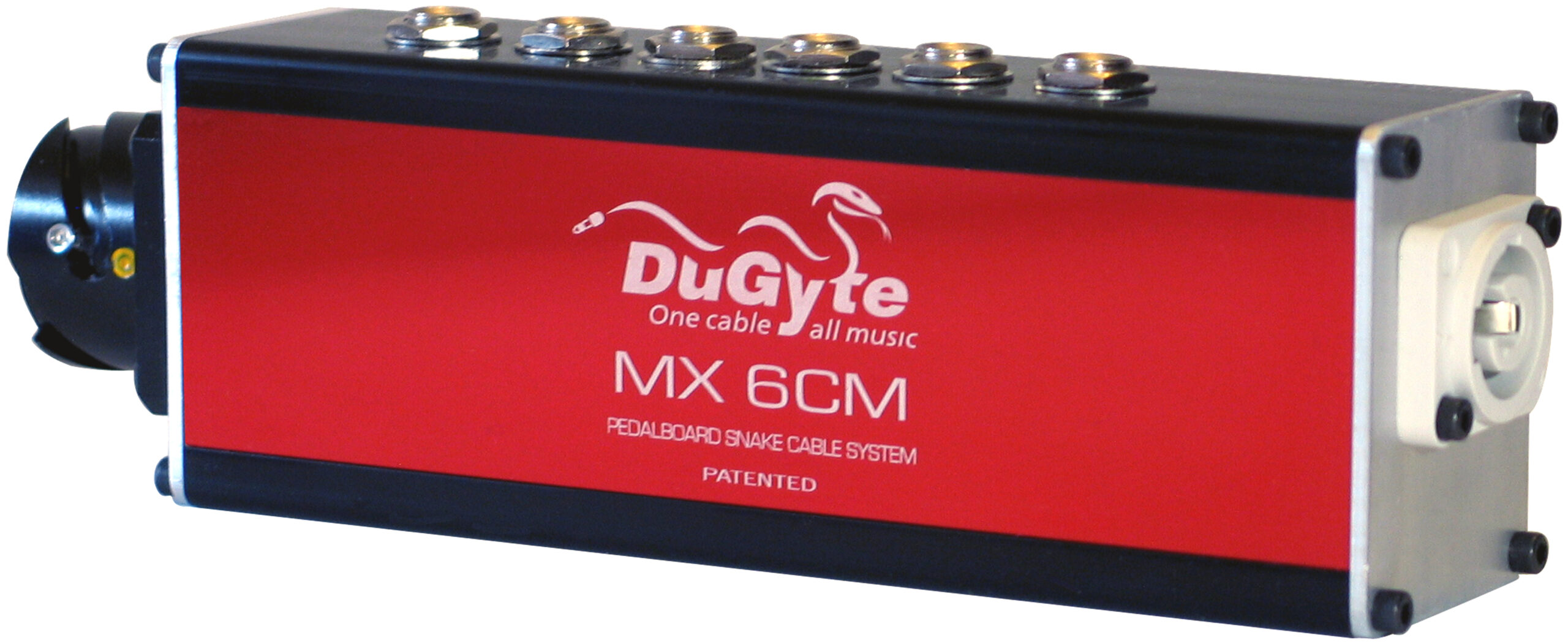

MX 6CM Pedalboard Junction Box

  • Six (6) Audio Signal Channels
  • PowerCon (Grey) AC Mains Output Receptacle

MX 6CM Cable Box

  • Six (6) Audio Signal Cables with 6.3mm (1/4 in) plugs
  • PowerCon (Blue) AC Mains Input Receptacle
  • Power On/Off Switch
  • Power Fuse

The MX 6CM All-In-One cable contains multiple mono (including Humbuster), stereo and balanced signal lines and a 100/240 VAC 50/60Hz power line that uses PowerCon connectors for a safe, secure connection. [Note: * Humbuster cable technology is a trademark of Fractal Audio]

System Specification

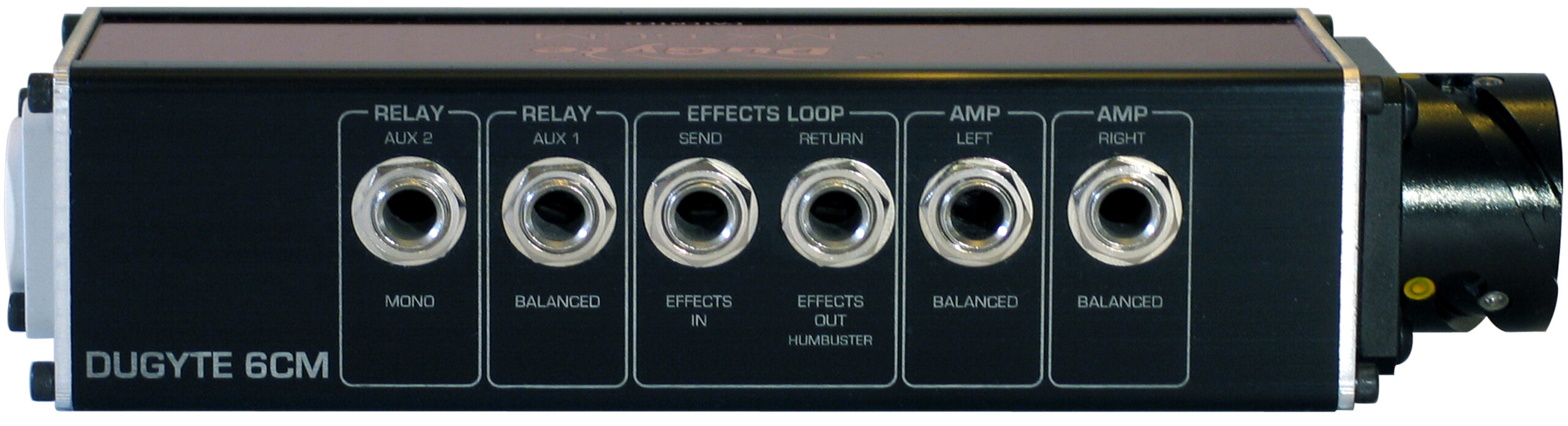

MX 6CM Stereo Pedalboard Junction Box

Signal Connections

  • Amp – Balanced/Stereo Jack – Right Channel Input to amplifier
  • Amp – Balanced/Stereo Jack – Left Channel Input to amplifier
  • Effects Loop Return – Mono Jack – Effects input to amplifier (Humbuster Cable*)
  • Effects Loop Send – Mono Jack – Effects output from amplifier
  • Relay Aux-1 – Stereo Jack – Input from Footswitch or Other Input/Output
  • Relay Aux-2 – Mono Jack – Output from Wireless Loop back or Other Input/Output

Power Connections

  • PowerCon Receptacle [Grey Type] – Mains Output Cable to IEC for multi-effects system or AC/DC power supply.

MX 6CM Cable

Signal Connections

  • Amp – Balanced/Stereo Jack – Right Channel Input to amplifier
  • Amp – Balanced/Stereo Jack – Left Channel Input to amplifier
  • Effects Loop Return – Mono Plug – Effects input to amplifier (Humbuster cable*)
  • Effects Loop Send – Mono Plug – Effects output from amplifier
  • Relay Aux-1 – Stereo Plug – Input from Footswitch or Other Input/Output
  • Relay Aux-2 – Mono Plug – Output from Wireless Loop back or Other Input/Output

Power Connections

PowerCon Receptacle [Blue Type] – input for connecting AC Mains Power

[Note: * Humbuster technology is a trademark of Fractal Audio]

Cable Specification

DuGyte Cable Channels & Connections

Pedalboard Junction Box
Class Qty Type Usage Comments
Signal 3 Balanced/Stereo Channels Amp Right; Amp Left; Relay Aux-1
2 Unbalanced/Mono Channels Effects Loop Send; Relay Aux-2
1 Humbuster Channel Effects Loop Return
Power Out 1 PowerCon Receptacle (Grey) AC Mains 100-240 VAC 50/60Hz Cable with IEC plug
Cable Box, Cable Leads and Connectors
Location / Class Qty Type Usage
Pedalboard 1 MPJL5-19 Pin Bayonet Connector All Signal & Power
Back Stage Signal 3 6.3mm (1/4 in) TRS/Stereo Amp Right; Amp Left; Relay Aux-1
3 6.3mm (1/4 in) TS/Mono Effects Loop Send; Effects Loop Return; Relay Aux-2
Back Stage Power In 1 PowerCon Receptacle (Blue) AC Mains 100-240 VAC 50/60Hz Cable with AC Mains plug

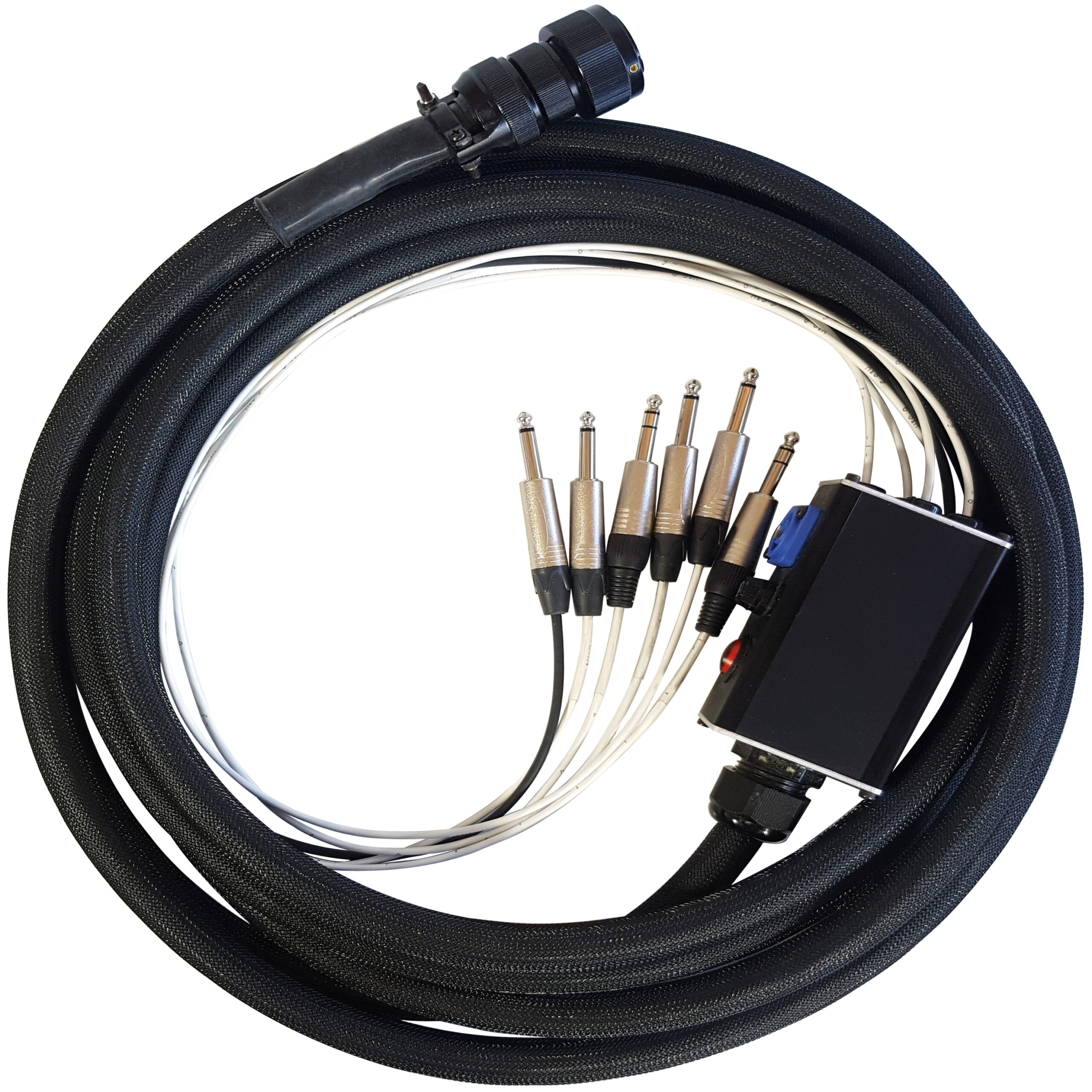

DuGyte All-In-One Cable Loom

PVC jacketed snake cable consisting of 24 AWG stranded bare annealed copper, polypropylene insulated signal channels individually shielded and jacketed. Single AC Mains Power channel with multi-conductor 14 AWG stranded bare copper , PVC insulated and individually shielded

  1. Signal Lines
    • Conductor
      • AWG Size and Stranding: 24 AWG 7 strands 32 AWG
      • Material: Bare annealed copper
    • Insulation Material: Polypropylene
    • Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
    • Pair Jacket Material: White polyvinyl chloride
  2. AC Power Line
    • Conductor
      • AWG Size and Stranding: 14 AWG 19 strands
      • Material: Bare annealed copper
    • Insulation Material: Polyvinyl chloride
    • Shield: Aluminum/polyester tape and 18 AWG 7 strand tinned copper drain wire
  3. Cable Assembly
    • Jacket Material: Matte polyvinyl chloride
    • Jacket Color: Black
  4. Electrical Specifications
    • Capacitance @ 1 kHz:
      • Between conductors: 25 pF/ft.
      • Conductor to shield: 45 pF/ft.
    • Characteristic Impedance: 60 ohms nominal
    • Resistance at 20C: 24.5 ohms/1000 ft.

Additional information

Plug End Type

Straight, Right Angle (Send & Return), Cannon/XLR
