DuGyte MX 7CM Stereo Effects System
DuGyte MX 7CM Stereo Effects System - Image 2
DuGyte MX 7CM Stereo Effects System - Image 3
DuGyte MX 7CM Stereo Effects System - Image 4
DuGyte MX 7CM Stereo Effects System - Image 5
DuGyte MX 7CM Stereo Effects System - Image 6
DuGyte MX 7CM Stereo Effects System - Image 7
DuGyte MX 7CM Stereo Effects System - Image 8
DuGyte MX 7CM Stereo Effects System - Image 9

DuGyte MX 7CM Stereo Effects System

From: $560.00

The DuGyte MX 7CM  is the Stereo Amp & Effects Pedalboard Snake Cable System (as used by Larry Mitchell) designed for guitarists who run a stereo amp and stereo effects loop set up’s, or a multi effects process with stereo effect send and return effects loops like the Fractal AX8/FN3, Helix or BOSS processors.

Each MX 7CM contains balanced amp outputs and allow for 4, 5 , 6 and 7 cable method connection configurations, but using just one cable. Another great feature of all MX Series products is the inclusion of AC ground isolation. Only available in the MX Series, the AC Ground isolation ensures there is no ‘extra or added’ noise from ground loops or bad ground issues within the AC power supply to your pedalboard.

The MX 7CM can be customized to suit your individual needs, just let us know your requirements. Check out the optional mounting kit that can attach your 7CM to your pedalboard.

SKU: MX7CM-S-5RNS Category:

Description

Overview

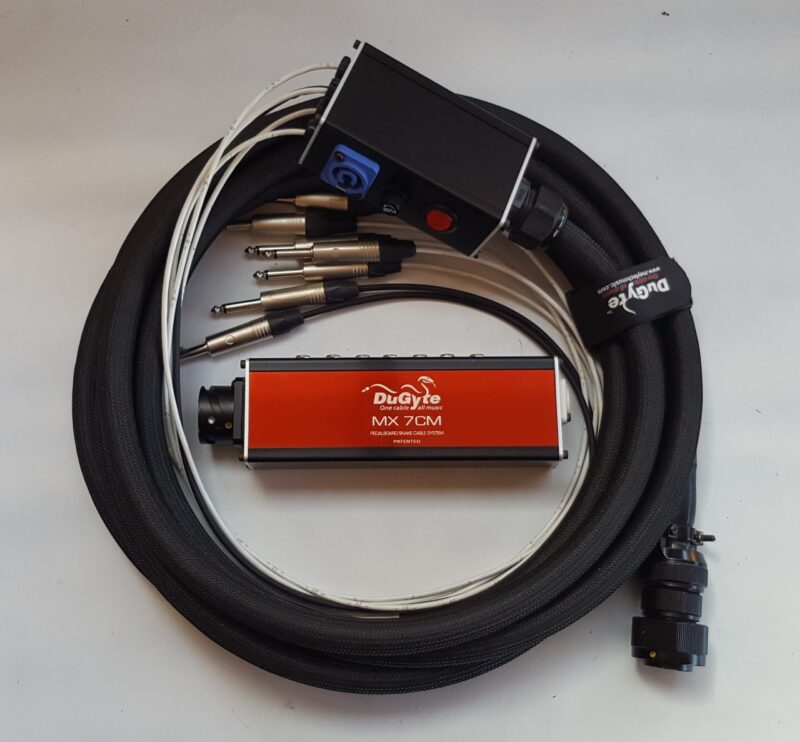

MX 7CM System Components

  1. Pedalboard Junction Box

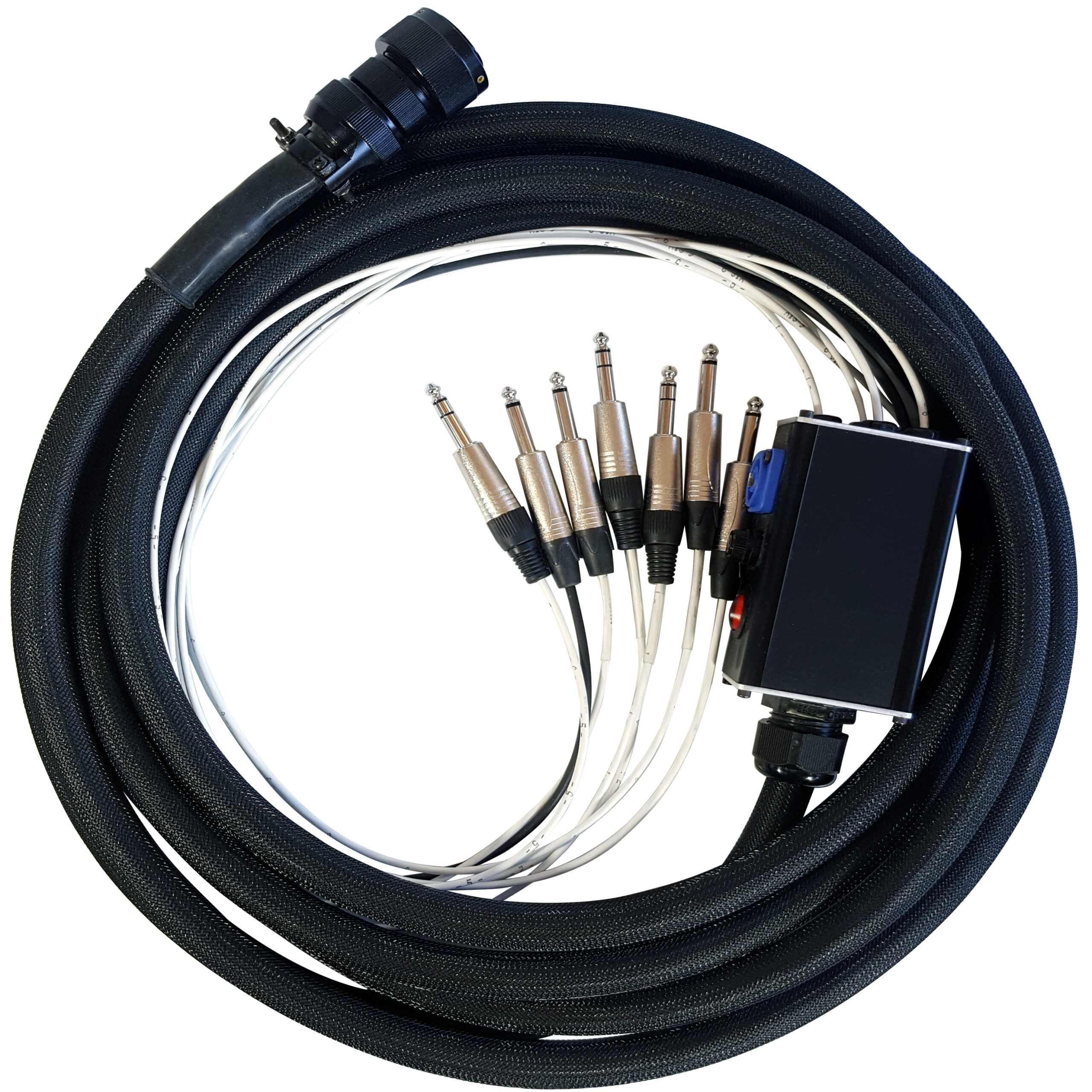

  2. All-In-One Cable & Cable Box

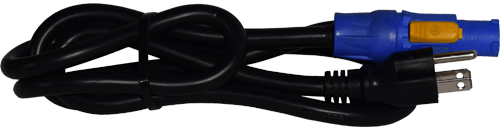

  3. PowerCon AC Mains Input Cable

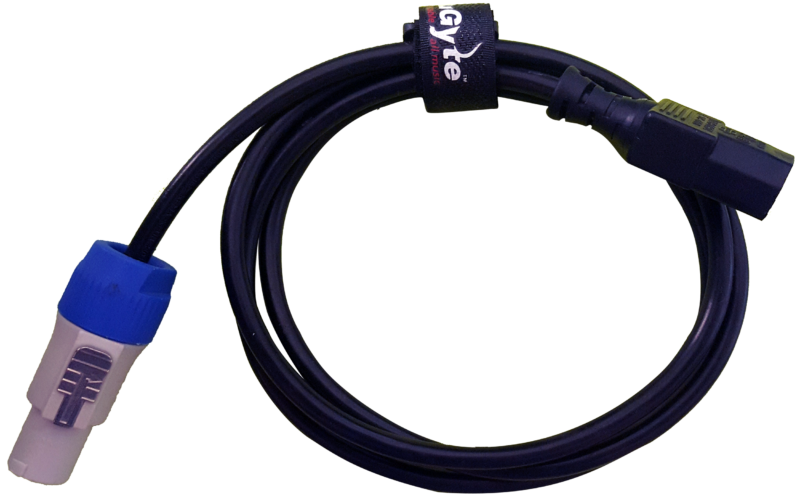

  4. PowerCon AC Mains Output Cable

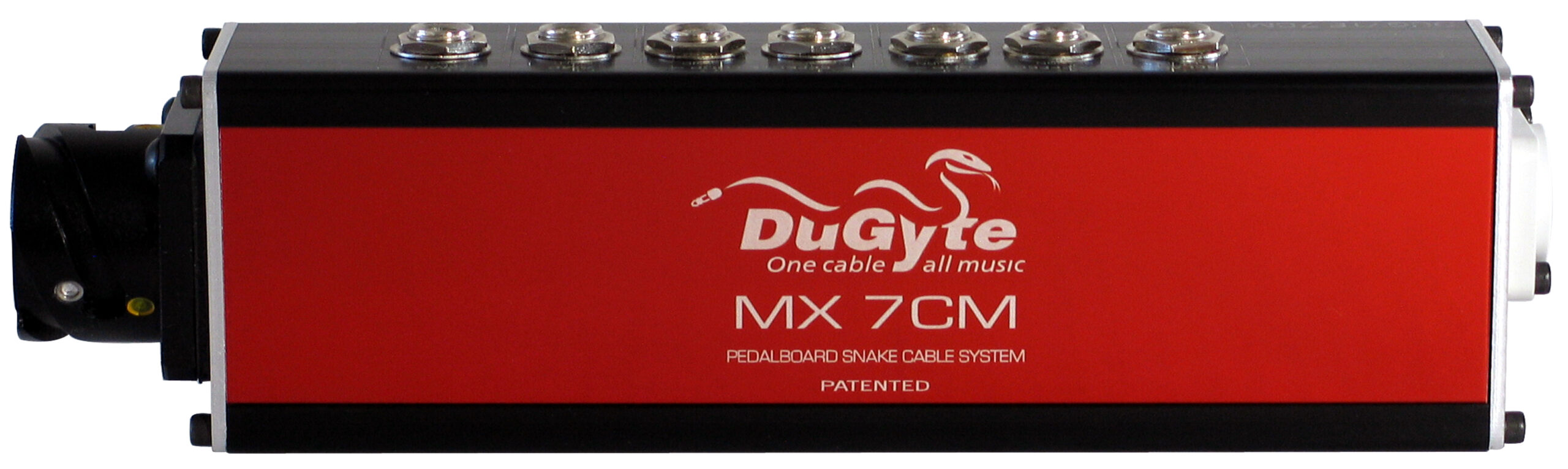

MX 7CM Pedalboard Junction Box

  • Seven (7) Audio Signal Channels
  • PowerCon (Grey) AC Mains Output Receptacle

MX 7CM Cable Box

  • Seven (7) Audio Signal Cable
  • Power On/Off Switch
  • Power Fuse
  • PowerCon (Blue) AC Mains Input Receptacle
System Specification

MX 7CM Pedalboard Junction Box

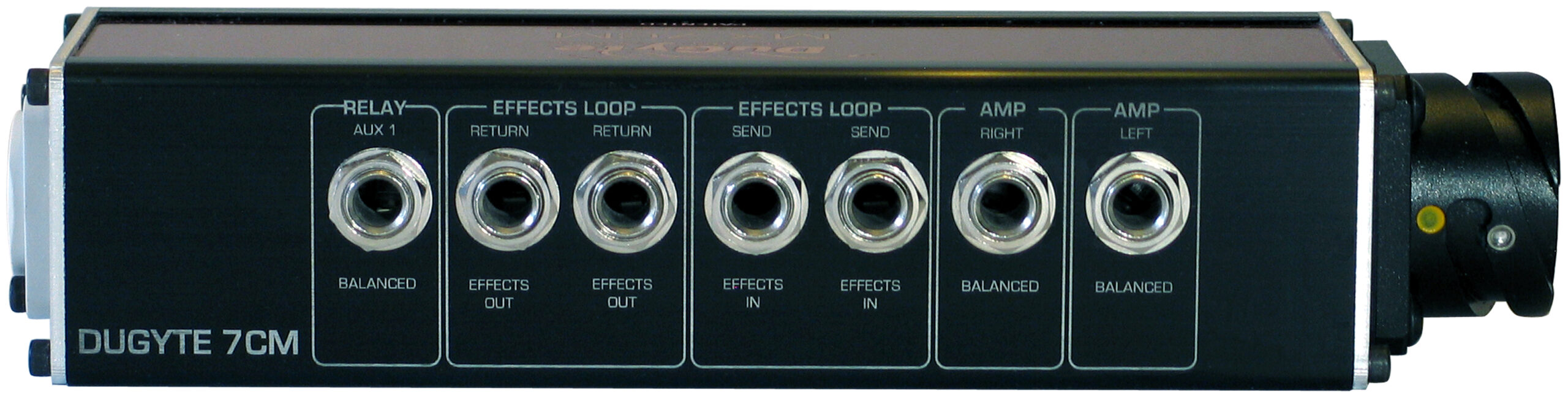

Signal Connections

  • Amp – Balanced/Stereo Jack – Right Channel Input to amplifier
  • Amp – Balanced/Stereo Jack – Left Channel Input to amplifier
  • Effects Loop Return 1 – Mono Jack – Effects input to amplifier
  • Effects Loop Return 2 – Mono Jack – Effects input to amplifier
  • Effects Loop Send 1 – Mono Jack – Effects output from amplifier
  • Effects Loop Send 2 – Mono Jack – Effects output from amplifier
  • Relay Aux-1 Stereo Jack – Input for Footswitch or Other Input/Output

Power Connections

  • PowerCon [Grey Type] – Mains Output Cable to IEC for multi-effects system or AC/DC power supply.

MX 7CM Cable Box

Signal Connections

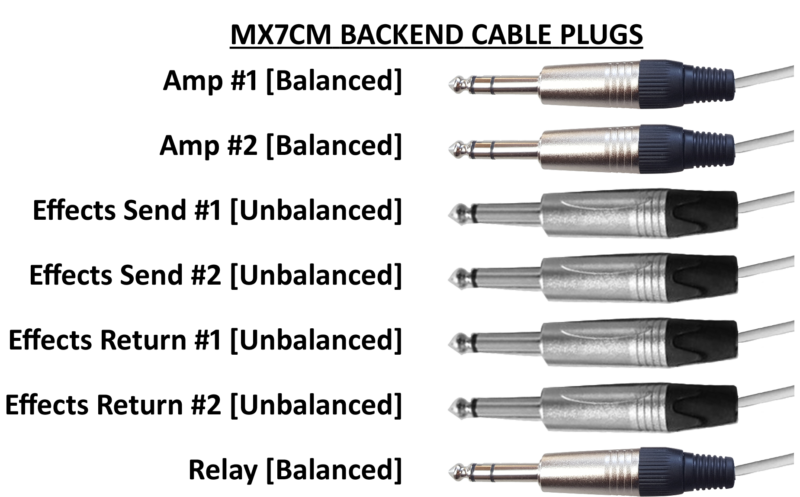

  • Amp – Balanced/Stereo Plug – Right Channel Input to amplifier
  • Amplifier – Balanced/Stereo Plug – Left Channel Input to amplifier
  • Effects Loop Return 1 – Mono Plug – Effects input to amplifier
  • Effects Loop Return 2- Mono Plug – Effects input to amplifier
  • Effects Loop Send 1 – Mono Plug – Effects output from amplifier
  • Effects Loop Send 2 – Mono Plug – Effects output from amplifier
  • Relay Aux-1 – Stereo Plug – Input for Footswitch or Other Input/Output

Power Connections

  • PowerCon [Blue Type] – Input for connecting AC Mains Power.
Cable Specification

DuGyte Cable Channels & Connections

Pedalboard Junction Box Channels
Class Qty Type Usage Comments
Signal 3 Balanced/Stereo Channels Amp Right; Amp Left; Relay Aux-1
4 Unbalanced/Mono Channels Effects Loop Send 1; Effects Loop Send 2; Effects Loop Return 1;
Effects Loop Return 2
Power Out 1 PowerCon Receptacle (Grey) Universal AC Mains 100-240 VAC 50/60Hz Use Cable with IEC plug
Cable Box, Cable Leads and Connectors
Location / Class Qty Type Usage

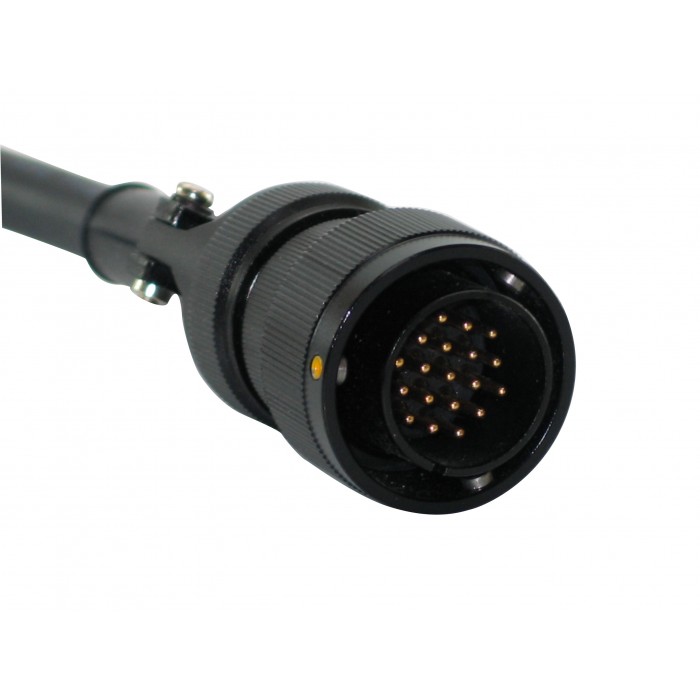

Pedalboard 1 MPJL5-19 Pin Bayonet Connector All Signal & Power
Back Stage Signal 3 6.3mm (1/4 in) TRS/Stereo Amp Right; Amp Left; Relay Aux-1
4 6.3mm (1/4 in) TS/Mono Effects Loop Send 1; Effects Loop Send 2; Effects Loop Return 1; Effects Loop Return 2
Back Stage Power In 1 PowerCon Receptacle (Blue) Universal AC Mains 100-240 VAC 50/60Hz Use Cable with AC Mains plug

All DuGyte Pedalboard Snake Cables use high quality industrial multi-pin connectors and professional style audio jack plugs.

DuGyte All-In-One Cable Loom

PVC jacketed snake cable consisting of 24 AWG stranded bare annealed copper, polypropylene insulated signal channels individually shielded and jacketed. Single AC Mains Power channel with multi-conductor 14 AWG stranded bare copper , PVC insulated and individually shielded

  1. Signal Lines
    • Conductor
      • AWG Size and Stranding: 24 AWG 7 strands 32 AWG
      • Material: Bare annealed copper
    • Insulation Material: Polypropylene
    • Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
    • Pair Jacket Material: White polyvinyl chloride
  2. AC Power Line
    • Conductor
      • AWG Size and Stranding: 14 AWG 19 strands
      • Material: Bare annealed copper
    • Insulation Material: Polyvinyl chloride
    • Shield: Aluminum/polyester tape and 18 AWG 7 strand tinned copper drain wire
  3. Cable Assembly
    • Jacket Material: Matte polyvinyl chloride
    • Jacket Color: Black
  4. Electrical Specifications
    • Capacitance @ 1 kHz:
      • Between conductors: 25 pF/ft.
      • Conductor to shield: 45 pF/ft.
    • Characteristic Impedance: 60 ohms nominal
    • Resistance at 20C: 24.5 ohms/1000 ft.

Additional information

Plug End Type

Straight, Right Angle (Send & Return), Cannon/XLR

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.
