Description

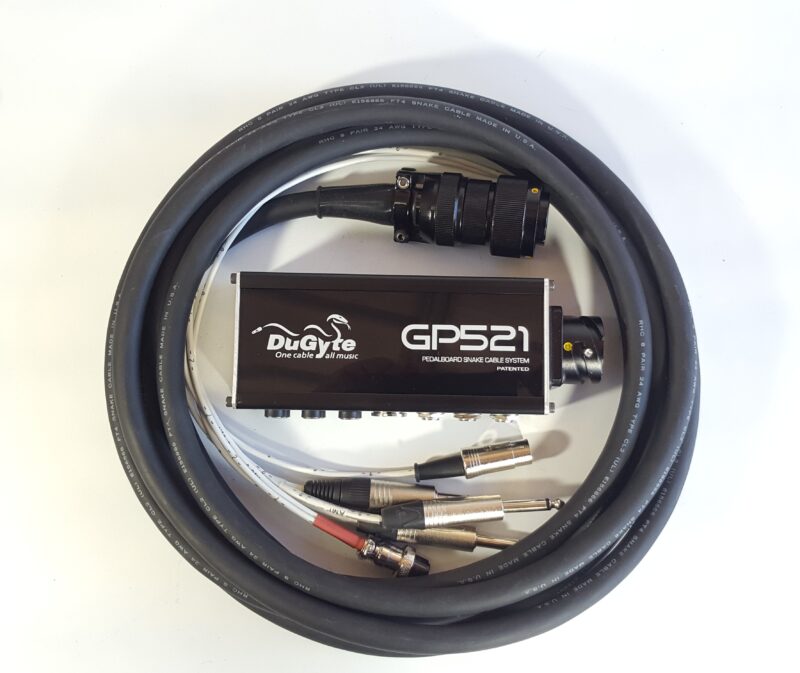

GP521 System Components
- The Pedalboard Junction Box
- All-In-One Snake Cable
- GP-Series AC/DC Power Supply
GP Series Power Supply
All GP Series Systems are supplied with a universal 100-240 VAC 50/60 Hz Class-II AC/DC Power Supply. Each power supply comes with Power Factor Correction (PFC) for better EMI and EMC performance. All GP systems provide the option to expand the power by adding a Viper ISO 6, because you may want to add more pedals. See DuGyte Systems Viper Series high current isolated Power Supplies here for more details.

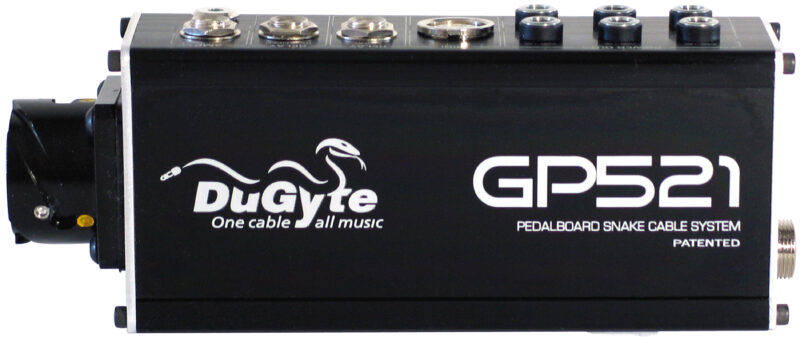

DuGyte GP521 Junction Box Connections

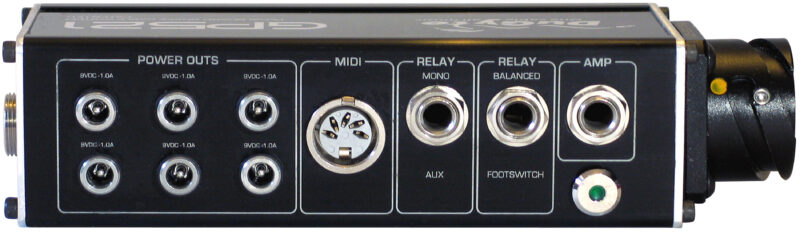

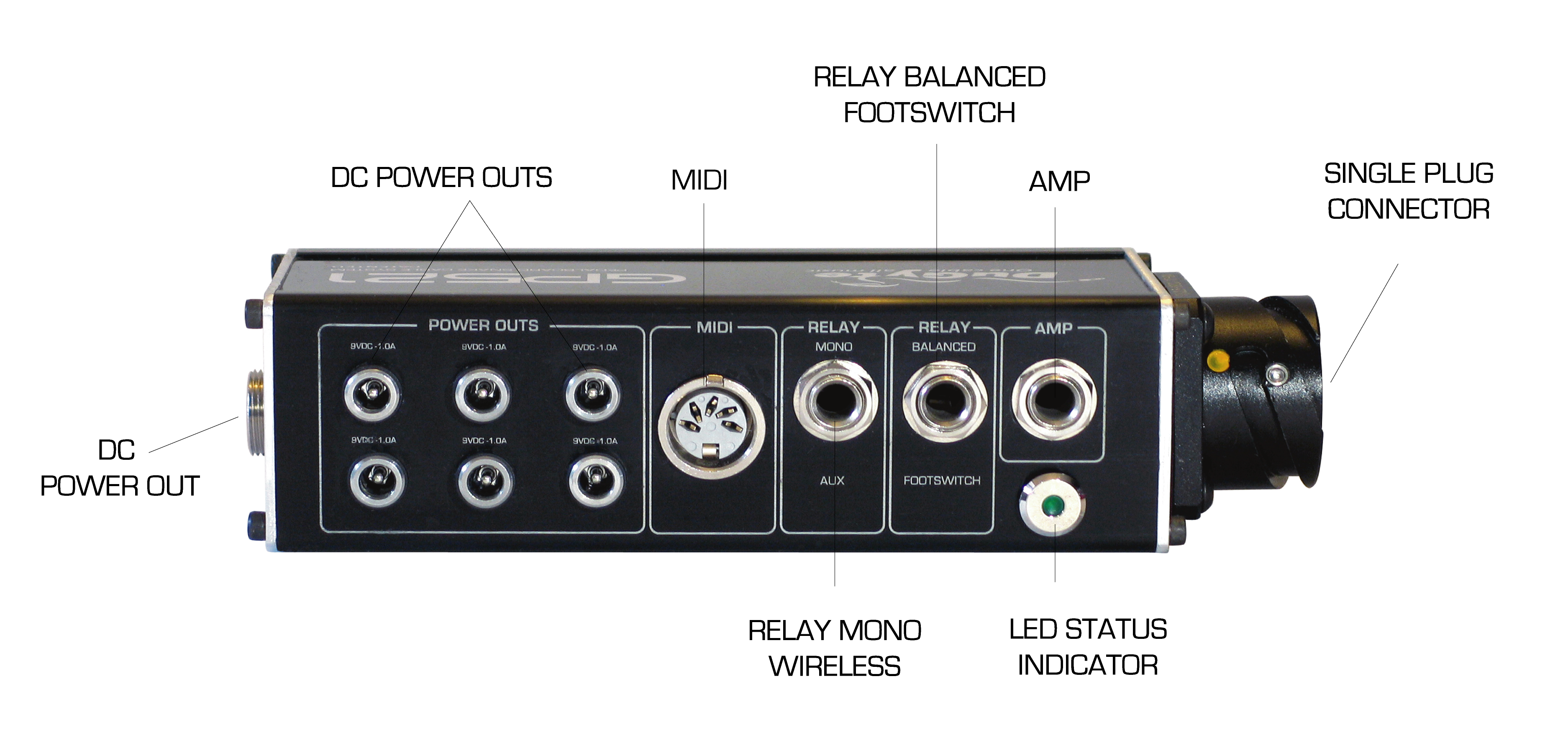

Pedalboard Signal Input Connections
- Amp – Mono Jack – Input to amplifier
- Relay Aux-1 – Stereo Jack – for Footswitch or Other Input/Output
- Relay Aux-2 – Mono Jack – Wireless Loop back or Other Input/Output
- MIDI: 5-Pin – Use with any MIDI device
Pedalboard DC Isolated Power Connections
- Six (6) Isolated Outputs – 9VDC @ 1000mA each
- Standard 2.1mm DC Power Sockets – center pin negative
- One (1) 24VDC power out (4 Pin Cobra plug – for power expansion options)
DuGyte Cable Channels & Connections
| Pedalboard Junction Box Channels | |||||
| Class | Qty | Type | Usage | Comments | |
| Signal | 1 | Balanced/Stereo Channels | Relay Aux-1 | ||
| 2 | Unbalanced/Mono Channels | Amp; Relay Aux-2 | |||
| 1 | MIDI Channel | MIDI Device | No phantom power | ||
| Power Out 1 | 6 | DC Power Channels | 9VDC Pedal Power Output | ||
| Power Out 2 | 1 | DC Out Power Channel | 24VDC | For stand-alone Viper Power | |
| Cable Box, Cable Leads and Connectors | |||||
| Location / Class | Qty | Type | Usage | ||
| Pedalboard- | 1 | MPJL5-19 Pin Bayonet Connector | All Signal & Power | ||
| Back Stage Signal | 1 | 6.3mm TRS/Stereo Plug | Relay Aux-1 | ||
| 2 | 6.3mm TS/Mono Plug | Amp; Relay Aux-2 | |||
| 1 | 5-Pin MIDI Plug | MIDI Device | No phantom power | ||
| Back Stage Power In | 1 | DC Cobra Plug | 24VDC Input | Connect AC/DC Power Supply | |
DuGyte All-In-One Cable Loom
An overall matte PVC jacketed snake cable consisting of 24 AWG stranded bare annealed copper, polypropylene insulated signal and DC power channels, individually shielded and jacketed.
-
- Signal & DC Power Lines
- Conductor
- AWG Size and Stranding: 24 AWG 7 strands 32 AWG
- Material: Bare annealed copper
- Insulation Material: Polypropylene
- Shield: Aluminum/polyester tape and 24 AWG 7/32 tinned copper drain wire
- Pair Jacket Material: White polyvinyl chloride
- Conductor
- Cable Assembly
- Jacket Material: Matte polyvinyl chloride
- Jacket Color: Black
- Electrical Specifications
- Capacitance @ 1 kHz:
- Between conductors: 25 pF/ft.
- Conductor to shield: 45 pF/ft.
- Characteristic Impedance: 60 ohms nominal
- Resistance at 20C: 24.5 ohms/1000 ft.
- Capacitance @ 1 kHz:
- Signal & DC Power Lines
DuGyte GP Series AC/DC Power Supply
Overview
DuGyte GP Series AC/DC Power Supplies are a highly reliable, single-output, desktop style power supply. Its rating is a class II power unit (with PFC), equipped with a standard IEC320-C14 AC inlet. It has an operating input range from 100VAC to 240VAC..
With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, all DuGyte GP Series Power Supplies are compliant with USA EISA 2007IDoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. The entire GP Series Power Supplies utilize 94V-0 flame retardant plastic case and are certified for international safety regulations.
Features
DuGyte AC/DC Power Supplies are
- Global Certificates: C Tick, UL, CUL, CE, TUV, PSE and more
- Universal AC Input I Full range
- 3 pole AC inlet IEC320-C14, Class-II power unit
- Built-in Active Power Factor Correction (PFC)
- No Load Power Consumption <0.15W
- Energy Efficiency Level VI
- Short Circuit / Current Overload / Over Voltage / Over Temperature Protection
- Fully-Enclosed Plastic Case
- Wide-Range Working Temperature -30-+70℃
- LED Power-On Indicator
